This Casio Cassiopeia IT-700M30RC Pocket PC is brand new and comes in original box (some might not come in the original big box, but all parts and accessories will be in their small individual original boxes). We will open the boxes for testing only.
This is a device that we're not too familiar with, so please look at the information below. More information can be found at http://www.casio4business.com/pa2/products/it700/it700_index.html.
They do NOT have a barcode scanner engine (at least not visible from the outside). So, our guess it that you'd use a Compact Flash scanner card.

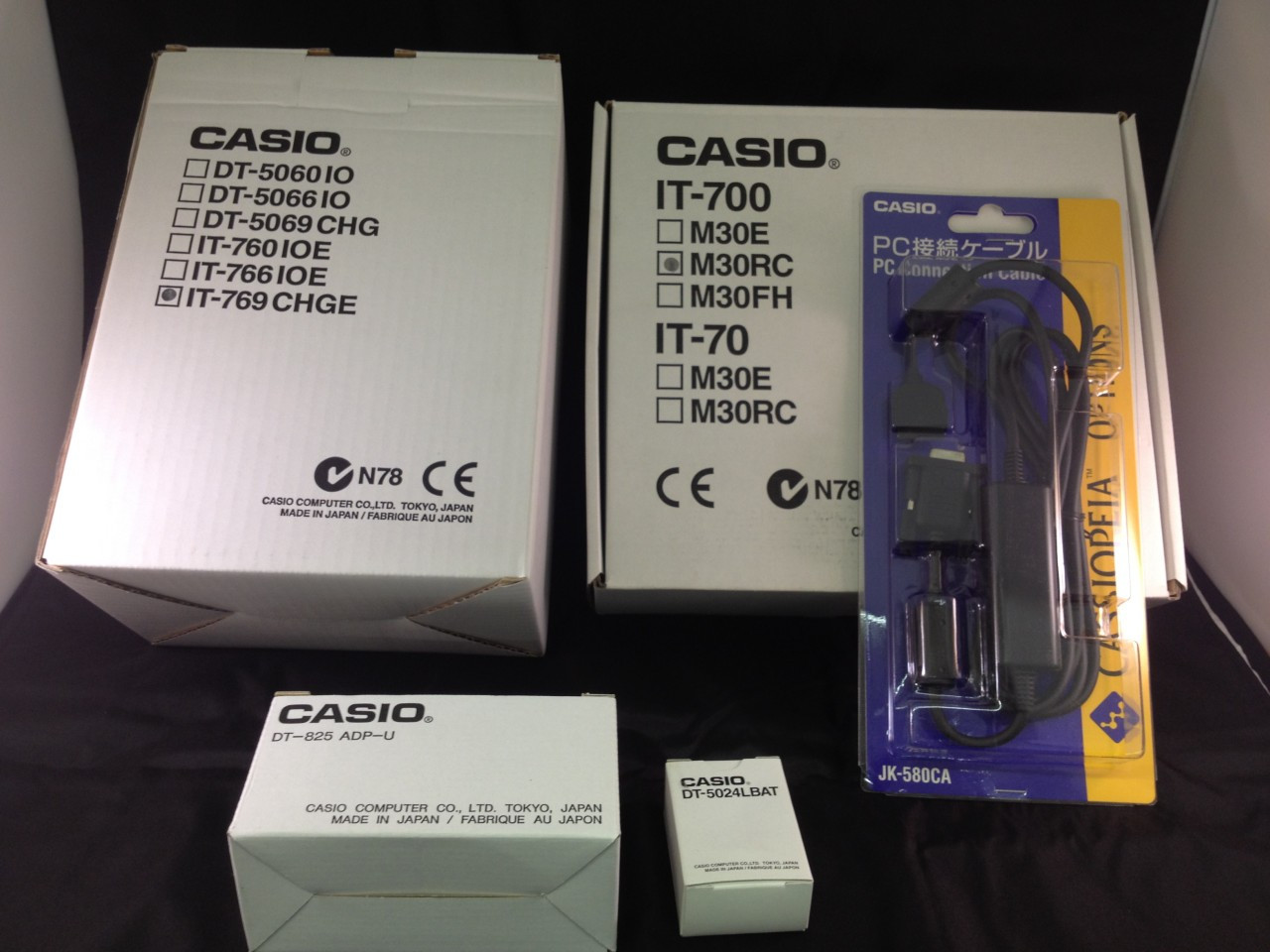

Package contents: IT-700M30RC, battery, battery cover, stylus, AC adapter, charging/docking cradle, serial sync cable (casio to 9pin female end), User's Guide, Microsoft Windows for Pocket PC - Professional Edition 2000 CD-ROM, neck strap for carrying, and original boxes.
Descriptions |
IT-70 |
IT-700 |
IT-70RF |
IT-700RF |
CPU |
VR4122 (150 MHz) |
Operating System |
Windows CE version 3.0 Pocket PC |
Memory |
RAM |
32 MB |
FROM (NAND) |
16 MB |
Display |
Device(LCD) |
Mono. STN |
Color TFT |
Mono. STN |
Color TFT |
No. of dots |
240 x 320 |
Backlight |
LED |
Cold cathode |
LED |
Cold cathode |
Touch-panel |
Built-in |
Audio |
Microphone |
Built-in |
Speaker |
Built-in |
Interface |
IrDA port |
IrDA Version 1.1 |
Communication port |
Serial port (20-pin) |
CF0 port |
Compact flash card, TYPE I/II |
CF1 port |
Compact flash card, TYPE I/II |
not available |
Headphone |
Built-in |
RF module |
Frequency |
n/a |
2.4 GHz |
Modulation method |
n/a |
DSSS |
Protocol |
n/a |
IEEE802.11b |
Transmission speed |
n/a |
11 Mbps |
Power |
Main battery |
Lithium-ion battery (rechargeable) * |
Sub-battery |
CR-2032 (memory backup only) |
Memory backup |
4 days (with only CR-2032) |
Environment |
Drop durability |
1.0m |
0.7m |
1.0m |
0.7m |
Operating temperature |
-5 to 50°C |
Operating humidity |
20 to 80%RH (no condensation) |
Water splash proof |
Compliant with IP level 2 |
Software |
Application |
Microsoft's Pocket Word, Pocket Excel, ActiveSync, etc. Casio's communication utility, card backup tool, etc. |
Compiler |
Yes |
Development tool |
Yes |
Dimensions |
165 (L) x 85 (W) x 27.7 (H) mm |
Weight |
Approx. 320g |
Approx. 330g |
Approx. 330g |
Approx. 340g |
* Option |
|
|
|
|
|
|
|
IT-700
|
|
|
IT-70
|
|
|
|
Standard Microsoft Pocket PC |
|
|
Microsoft Pocket PC 2000 OS supports the open development environment enables easy and fast application development. |
|
|
|
|
|
|
Ruggedized design |
|
|
Water resistant and drop testing enable reliable outdoor use for SFA (Sales Force Automation) and FFA (Field Force Automation) applications. |
|
|
|
|
|
|
Color or Monochrome LCD screen |
|
|
65,536 colors touch display is ideal for any business application such as merchandising and store planning applications. |
|
|
|
|
|
|
Flexibility |
|
|
Many interface card via Compact flash card slot. |
|
|
|
|
|
|
Model Selection |
|
|
IT-700M30RC |
: |
Color LCD with built-in Wireless LAN model |
|
|
|
IT-700M30E |
: |
Color LCD model |
|
|
|
IT-70M30RC |
: |
Monochrome LCD with built-in Wireless LAN model |
|
|
|
IT-70M30E |
: |
Monochrome LCD model |
|
|
|
|
|
|
|
Wireless LAN |
|
|
The IT-70RF and IT-700RF are provided with an integrated 2.4GHz spread spectrum radio frequency module. This is compliant with the IEEE 802.11b open standard. Consequently, both models are wireless-ready out of the box for local area network (LAN) connectivity, and can seamlessly integrate into any IEEE 802.11b network.
These wireless-ready models are particularly appropriate for warehouse, logistics, quality control, production control, healthcare, and restaurant order taking applications. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Portability |
|
|
The IT-70/IT-700's lightweight design (coupled with its robustness) truly provide the means to extend a company's traditional computing network out of the office and into the hands of the mobile worker. With all models weighing around 300g (including battery and RF models) these terminals can be carried and handled for long operational shifts without fatigue. Their compact design allows them to fit comfortably in a pocket, carry case or holster* * not supplied as an option |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Easy Operation |
|
|
The slim line width of each model means that they can fit easily and comfortably into a user's palm. A 65,536 colors display greatly extends the range of corporate applications for which these models can be used. A range of accessories allow the IT-70/IT-700 to be easily integrated into a computing network and to be used with a host of peripheral devices. An integrated IrDA interface enables wireless connection and wireless printing. An optional recharging cradle can be permanently connected and networked to a PC system. A long-life rechargeable battery is also available. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Robust |
|
|
The entire range can withstand outdoor usage. Each model has been tested to the demanding Industrial Protection level 2 designed to simulate exposure to rain conditions. Every orientation has been tested by multiple dropping from a height of 1 meter (or 0.7 meters for color display models). Reliable operation is ensured even with the use of Casio's compact laser scanning option or the integrated RF models. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Open Architecture |
|
|
Microsoft's Pocket PC is supported worldwide by a vast network of software developers. To corporate users who plan to install mobile terminals into their workforce for the first time, their IT departments will relish the familiarity of standard Win32 APIs and the ease of data synchronization and interfacing to their PC network and back office systems. Developers can fully utilize their existing knowledge of Visual Basic and Visual C++ and create applications using the most appropriate architecture - client/server, thin-client or Web-based. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
